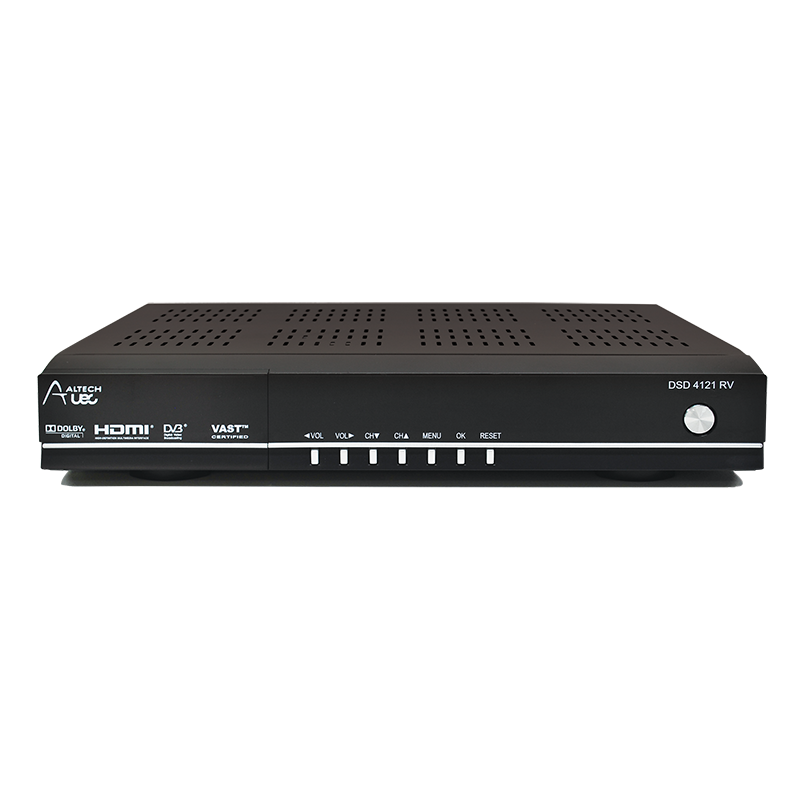

Vast DSD4121RV PVR 12V/240V Satellite Receiver

The DSD4121RV is a MPEG 2/4 High Definition digital set top box designed specifically to meet the requirements of the Optus Aurora Digital platform and associated VAST certification process. It can be connected to both flat panel and legacy CRT TV’s. It has been ‘future-proofed’ through the incorporation of an Ethernet port for connection to the internet and USB port – allowing the user to download software updates. You can record TV via the USB and an external hard drive.Front End Tuner Specifications Frequency range: 950 - 2150 Mhz DVB- Standard: DVB-S2 QPSK Demodulator , 8 PSK Symbol Rate ( DVB-S2 ): 2 Msym/sec to 30 Msym/sec Symbol Rate ( DVB-S ): 2 Msym/sec to 45 Msym/sec Processor Core Host Processor: STi 7111, 450 Mhz core processor Flash Memory: 128 MBytes RAM: 256 MBytes Video Video Decoder: MPEG-4 (H.264), MPEG-2 MP@HL Video Format: PAL Video Outputs: 1080i, 720p, 576p, 576i Audio Audio Decoder: Mpeg 2 layer 1&2 ( Musicam ), MPEG4 AAC/AAC+ Dolby audio support: Downmix and pass through via HDMI, optical and coaxial connectors Connections RF in: F-Type HD video: HDMI SD Video: Composite video and Component video Digital Audio: Optical , Coaxial and HDMI Analogue Audio: RCA Left & Right USB: USB 2.0 Serial Connector: 9 pin D-type for data services Smart Card: ISO 7818 Ethernet: RJ45 Power Supply: 240V/12Volt DC power supply pack
